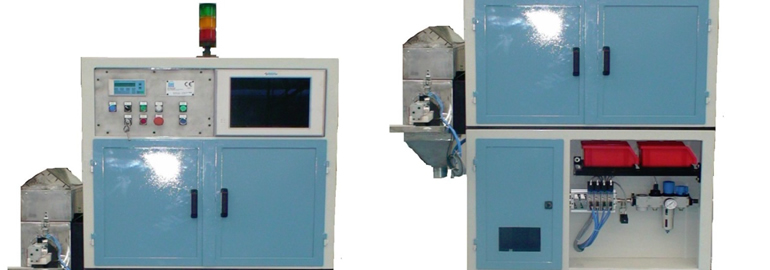

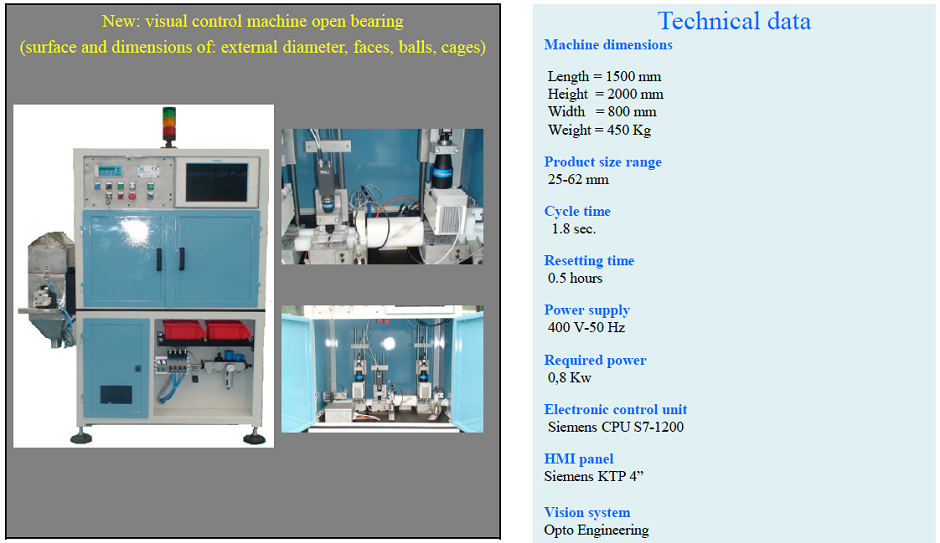

Machine for the Control Visual of open bearing surface dimensions: outside diameter, faces, balls and cages.

• Technical Data

Machine Dimension	Lenght: 1500 mm Height: 2000 mm Width: 800 mm Weight: 450 Kg
Product size range	25-62 mm
Cycle time	1.8 sec.
Resetting time	0.5 hours
Power supply	400 V-50 Hz
Required power	0,8 Kw
Electronic control unit	Siemens CPU S7-1200
HMI panel	Siemens KTP 4"
Vision system	OptoEngineering
