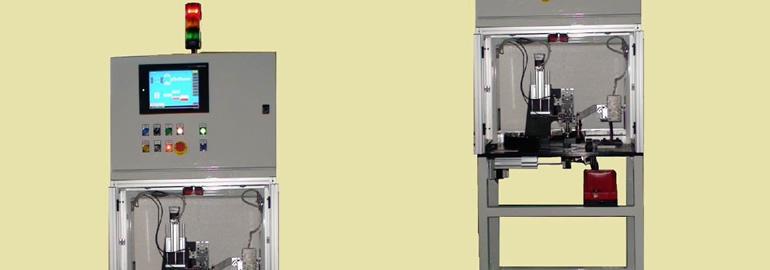

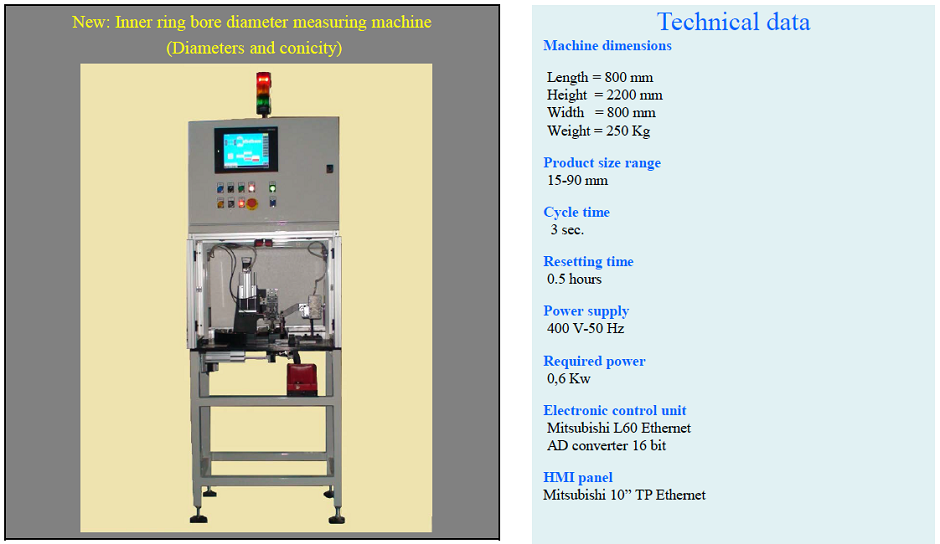

Measuring machine of the bore of the inner ring (diameter and taper).
- Video
- Technical Data
| Machine Dimension | Lenght: 800 mm Height: 2200 mm Width: 800 mm Weight: 250 Kg |
| Product size range | 15-90 mm |
| Cycle time | 3 sec. |
| Resetting time | 0.5 hours |
| Power supply | 400 V-50 Hz |
| Required power | 0,6 Kw |
| Electronic control unit | Mitsubishi L60 Ethernet AD converter 16 bit |
| HMI panel | Mitsubishi 10" TP Ethernet |
