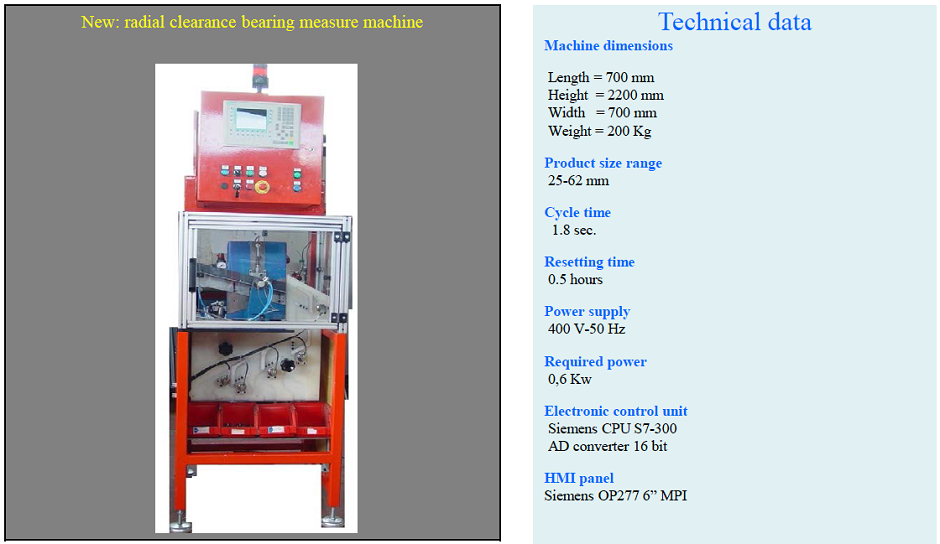

Measuring machine of the radial clearance of the bearing.
- Technical Data
| Machine Dimension | Lenght: 700 mm Height: 2200 mm Width: 700 mm Weight: 200 Kg |
| Product size range | 25-62 mm |
| Cycle time | 1.8 sec. |
| Resetting time | 0.5 hours |
| Power supply | 400 V-50 Hz |
| Required power | 0,6 Kw |
| Electronic control unit | Siemens CPU S7-300 AD converter 16 bit |
| HMI panel | Siemens OP277 6" MPI |
