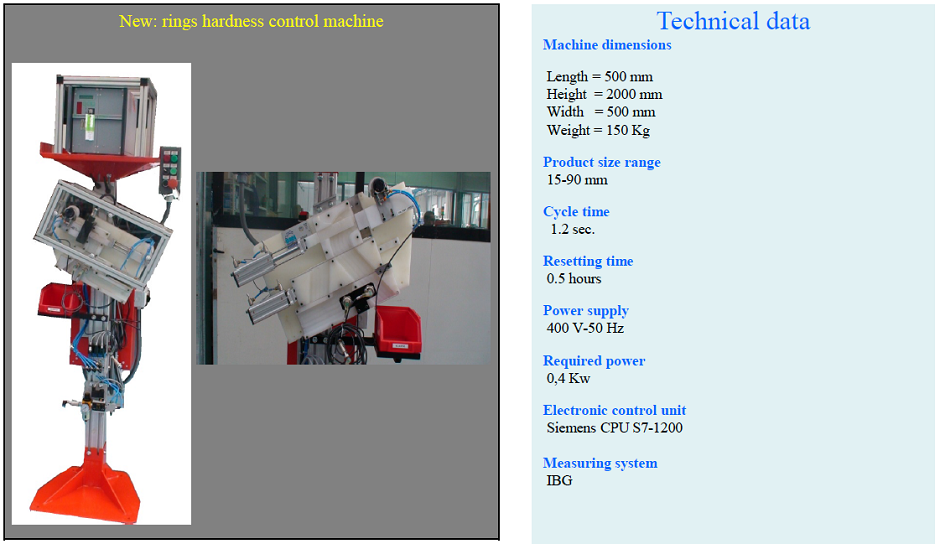

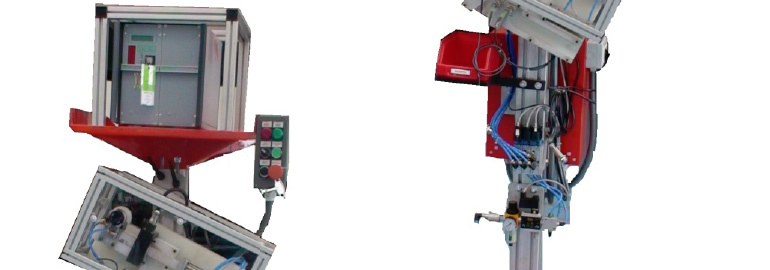

Measuring machine of the hardness of the bearing rings.
- Video
- Technical Data
| Machine Dimension | Lenght: 500 mm Height: 2000 mm Width: 500 mm Weight: 150 Kg |
| Product size range | 15-90 mm |
| Cycle time | 1.2 sec. |
| Resetting time | 0.5 hours |
| Power supply | 400 V-50 Hz |
| Required power | 0,4 Kw |
| Electronic control unit | Siemens CPU S7-1200 |
| HMI panel | IBG |
