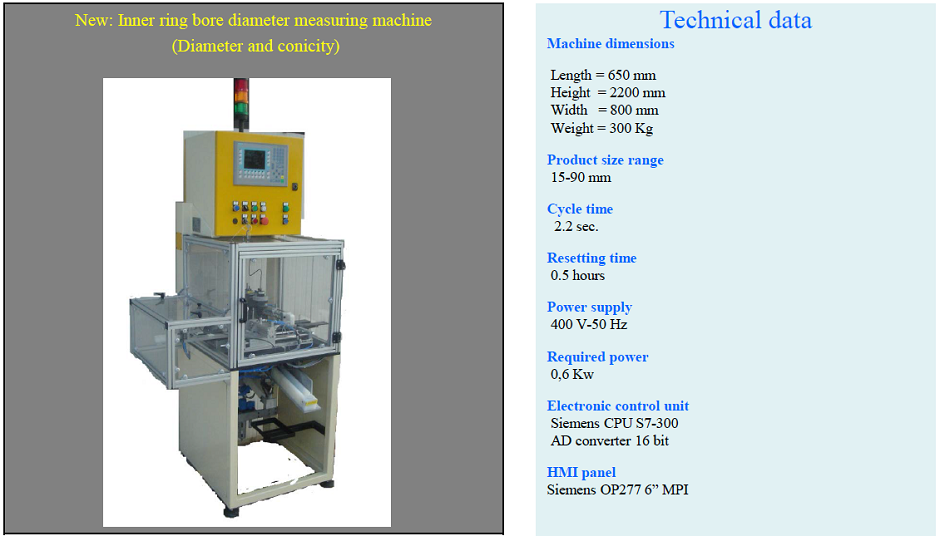

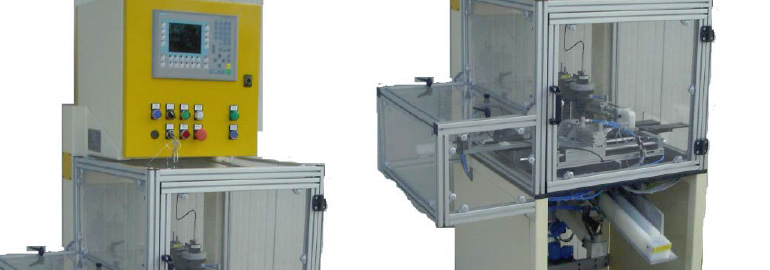

Measuring machine the bore of the inner ring (diameter and taper).
- Technical Data
| Machine Dimension | Lenght: 650 mm Height: 2200 mm Width: 800 mm Weight: 300 Kg |
| Product size range | 15-90 mm |
| Cycle time | 2.2 sec. |
| Resetting time | 0.5 hours |
| Power supply | 400 V-50 Hz |
| Required power | 0,6 Kw |
| Electronic control unit | Siemens CPU S7-300 AD converter 16 bit |
| HMI panel | Siemens OP277 6" MPI |
