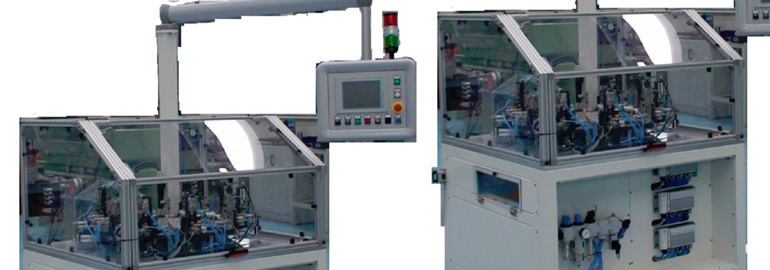

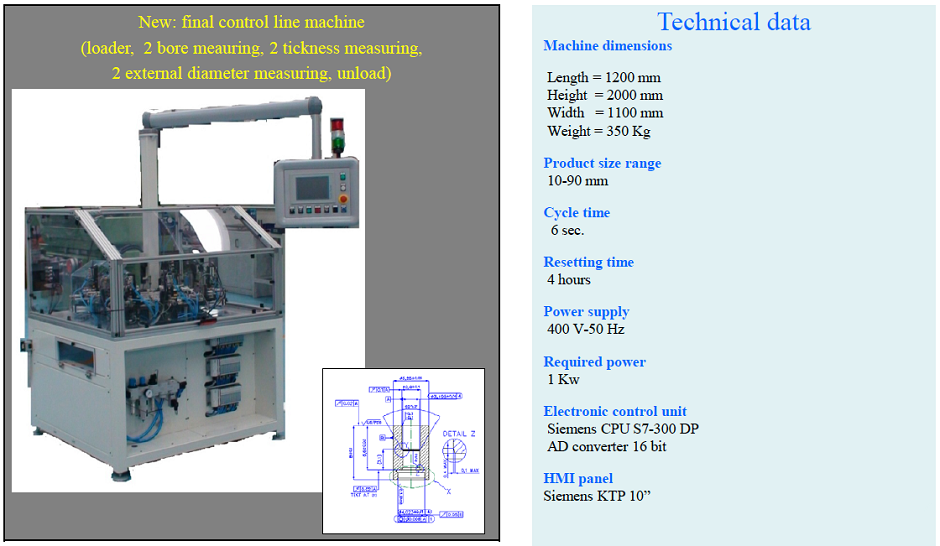

Measuring machine at the end of the line (charger, hole 2 meters, 2 meters thick, 2 meters of the outer diameter, exhaust).
- Video
- Technical Data
| Machine Dimension | Lenght: 1200 mm Height: 2000 mm Width: 1100 mm Weight: 350 Kg |
| Product size range | 10-90 mm |
| Cycle time | 6 sec. |
| Resetting time | 4 hours |
| Power supply | 400 V-50 Hz |
| Required power | 1 Kw |
| Electronic control unit | Siemens CPU S7-300 DP AD converter 16 bit |
| HMI panel | Siemens KTP 10" |
